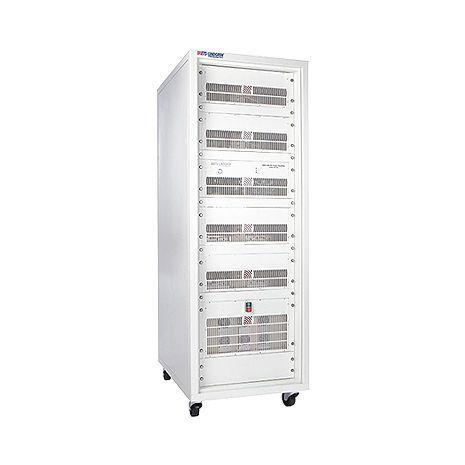

Power amplifier 8000-008

RFruggedEMC

ETS-Lindgrens Model 8000-08 RF Power Amplifier is a 3000 W power amplifier, designed primarily for EMC applications that include MIL-STD 461 RS103, 200 V/m. Utilizing GaAs technology, this RF amplifier provides higher linearity, rugged design and better efficiency performance versus silicon-based amplifiers. The 8000-008 provides very low distortion and tolerance for 100% mismatch. Key Features MIL-STD 461 RS103, 200 V/m High Reliability GaAs Design Excellent Performance and Efficiency Safety Interlock Physical Specifications Dimensions: 19 in, 34U Rack, 800 mm (34.6 in) Deep Weight: 291.0 kg (641 lb) Case Style (Standard): Rack with Rear Panel Connectors Electrical Specifications Electrical Frequency Range: 10 kHz to 100 MHz Nominal Output Power: 3000 W Gain Variation: 3 dB Harmonics: -20 dBc Maximum Output Impedance: 50 Input VSWR: 2:1 Maximum AC Supply: 3 Phase Options, Contact ETS-Lindgren for Details Supply Frequency Range: 50/60 Hz Line Power: <11 kVA Input Connector: N (f) Output Connector 7/16 (f)
