Anechoic test chamber AMS-88 series

antenna measurementhigh-capacity

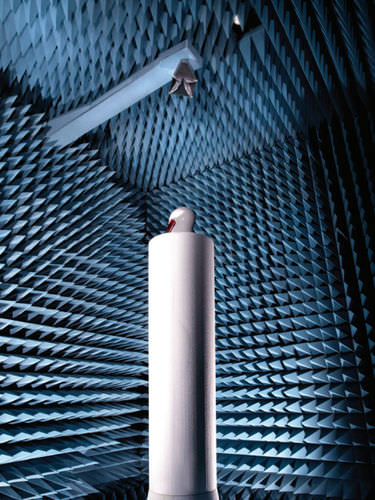

ETS-Lindgren's AMS-8800 Series Antenna Measurement System is a theta arm based antenna measurement test system. This system is ideally suited for automated measurement of antenna performance of wireless devices and devices with embedded wireless functions. The AMS-8800 includes a distributed axis positioning system consisting of an azimuth rotator to rotate the AUT about the phi axis and a separate theta arm positioner to elevate the measurement antenna around the AUT. The scanning assembly uses a dual polarized quad-ridged horn antenna mounted on the theta scanning arm. The arm moves in an arc over a low dielectric foam column that supports the AUT. The entire scanning mechanism is housed inside of an anechoic lined chamber that provides RF isolation and a near-freespace environment. ETS-Lindgren's EMQuest EMQ-100 Antenna Measurement Software provides test automation, post processing, and tabular/graphical data output. 5G FR1 Over-The-Air (OTA) test solutions are now available! ETS-Lindgren offers a turnkey package which will enable support for 5GNR SISO non-standalone [NSA] and/or standalone [SA] testing in the FR1 band. Key Features Efficient Over-The-Air (OTA) Testing for Wireless Devices Theta Arm Spherical Scanning System Frequency Range 400MHz to 10 GHz Turnkey Systems Available for SISO Testing Easy Calibration by User Optional Chair Support Dual Polarized Measurement Antenna Theta Arm The theta rotational arm scanning system provides a quick, convenient, and accurate test method for wireless devices. It is a good choice for larger, heavier AUTs, especially those which may be gravity dependent. Measurement Antenna
