Safety switch NM01VZA-M
single-polereinforcedIEC

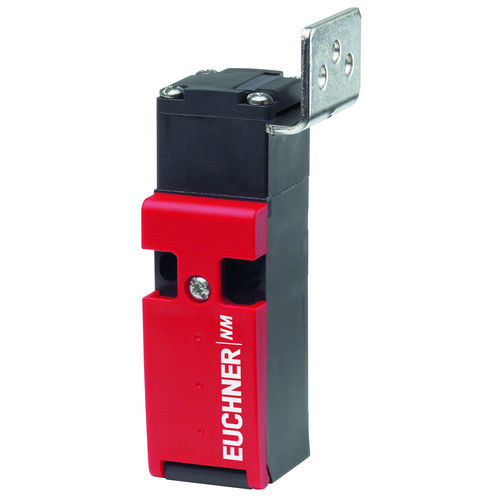

Safety switch - NM01VZA-M - EUCHNER GmbH + Co. KG - single-pole / reinforced / IEC
Safety switch - NM01VZA-M - EUCHNER GmbH + Co. KG - single-pole / reinforced / IEC
Add to favorites
Compare this product


Characteristics

Number of poles
single-pole
Protection level
reinforced, IEC, IP67
Other characteristics
thermoplastic, with silver contacts, with housing, safety, electromechanical, compact
Primary current

4 A

Voltage

24 V, 230 V

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

The plastic-encapsulated safety switches of design NM are used for monitoring the position of safety doors and moving machine components. The easy adjustability of the actuating head in 4 approach directions permits maximum flexibility. Two basic housings are available with up to 3 switching contacts. The compact design, as well as the option of any installation orientation, means that these switches can be integrated in all automation and assembly fields. • Protective insulation with glass fiber-reinforced plastic, degree of protection IP67 • Minimum dimensions combined with maximum functionality • 4 side approach directions • 1 approach direction from above • Approach direction can be changed simply and quickly • Increased actuator overrun of 4 mm • Smallest approach radii with straight/angled actuators • 3 cable entries laterally and from below (type NM11..., NM02...,NM12..., NM03...) • Large connection space of the individual contact elements • Up to 3 switching contacts
