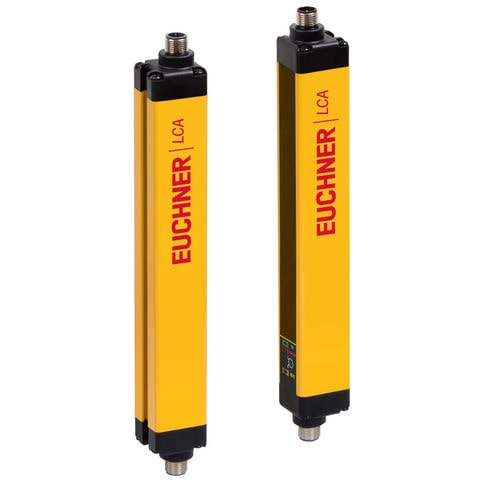

Safety light curtain LCA-4TR-M-30-1060-AP-156603multibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65, IP67
- Other characteristics
- muting, hand protection
- Operating range
12 m
(39'04" )
Description
• For cascading (series connection)
• Resolution 30 mm
• Protective field height 1,060 mm
• With plug connector M12
• 2 safety outputs (OSSD)
• Installation material is included with the product
• • Cascading (series connection)
• Safe monitoring options for any application
• Simple connection with M12 plug connector
• Safety category 4 and PL e according to EN ISO 13849-1
• ESPE type 4 according to DIN EN 61496-1
• Integrated evaluation
• Feedback loop connection
