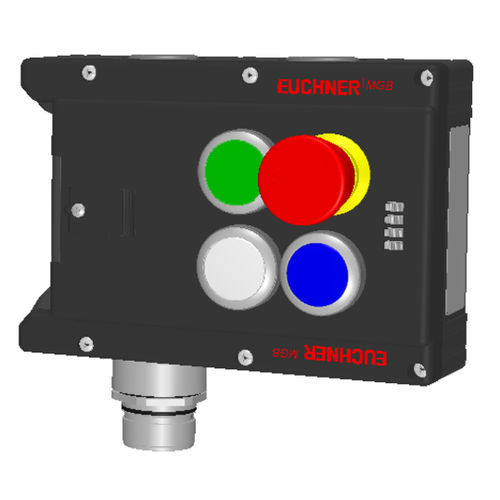

Lock with buttons MGB-L1-ARA-AI2A1-S6-L-119925

electromechanicalfor doorzinc

Locking module MGB-L1-ARA..., (guard locking by spring force) with 3 pushbutton, emergency stop, RC26 • Guard locking with guard lock monitoring • Can be connected in series with other AR devices (e.g. CES-AR and CET-AR) • Emergency stop according to ISO 13850 • 3 pushbuttons (illuminated, gn, wh, bu) • With plug connector RC26 • Unicode Guard locking type MGB-L1... The locking arm is held in the locked position by spring force and is unlocked by solenoid force (closed-circuit current principle, mechanically locked). Door hinge A mechanical door stop is permanently integrated into the evaluation module of the MGB. A marking on the stop makes adjustment easier. LED indicator The LED indicator indicates all important system and status information. Monitoring outputs OD ON when the door is closed OT Bolt tongue inserted into the evaluation module OL Guard locking solenoid in locked position OI Diagnostics; there is a fault Emergency stop device S1 2 positively driven contacts, emergency stop with turn-to-reset, not illuminated
