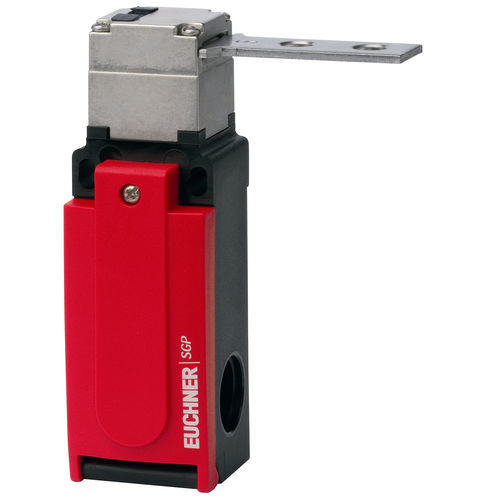

Safety switch SGP1E-3131A-M

single-polereinforcedIP67

• Actuating head made of metal • Cable entry M20 x 1.5 The safety switch SGP is the counterpart to safety switch STP. The entire STP and SGP product family has the same metal actuating head and the same actuator. As a result, either the safety switches STP (with guard locking) or SGP (without guard locking) can be used in a system, depending on the requirements. EUCHNER supplies the SGP product range with switching elements in various contact combinations (positively driven contacts / NO contacts). Dual-channel wiring to achieve the maximum possible safety level is possible with all variants. Given the particular property of the switching contacts of switching a minimum current of 1 mA, the safety switch SGP is also suitable for use on safe control systems. • Same drilling pattern as STP, same actuators • Same metal actuating head suitable for highest requirements • Flexible connection options using three cable entries
