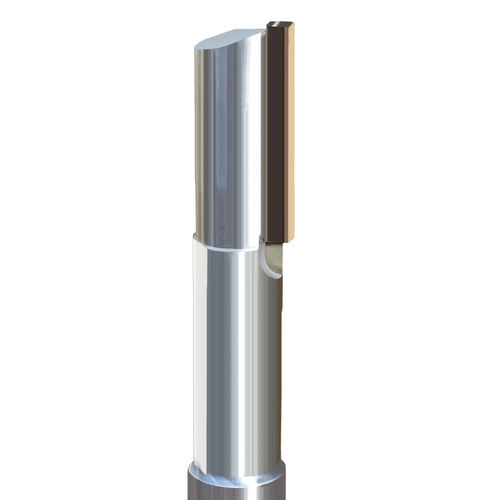

Milling tool with 1 tooth EURACRYL PL-FL DIA
end millinsertfinishing

Milling tool with 1 tooth - EURACRYL PL-FL DIA - EURACRYL GmbH - end mill / insert / finishing
Milling tool with 1 tooth - EURACRYL PL-FL DIA - EURACRYL GmbH - end mill / insert / finishing
Milling tool with 1 tooth - EURACRYL PL-FL DIA - EURACRYL GmbH - end mill / insert / finishing - image - 2
Add to favorites
Compare this product


Characteristics

Geometry
end mill
Construction
insert
Type
finishing
Material
monocrystalline diamond
Treated material
for PMMA, for polycarbonate
Other characteristics
high-precision, high-performance, cutting edge, for CNC machines, for machine tools, for high-speed cutting, with cylindrical shank, with 1 tooth, for high-gloss processing, high feed rate
Diameter

Min.: 4 mm
(0.16 in)

Max.: 12 mm
(0.47 in)

Length

60 mm, 65 mm, 76 mm, 84 mm
(2.36 in, 2.56 in, 2.99 in, 3.31 in)

Rotational speed

Min.: 8,000 rpm
(50,265.48 rad.min-1)

Max.: 36,000 rpm
(226,194.67 rad.min-1)

Description

Peripherical cutting end mills with monocrystalline CVD cutter for high gloss or transparent finish. For acrylic (PMMA), SAN and other plastic materials. The PL-FL model is an extension of the PL-FI model. In addition to the peripheral cutting edge, it also has a short front cutting edge as an auxiliary cutting edge with which a small * horizontal surface can be machined, such as the bottom of a step or the ground of a slot. Use this tool if a material offset was left on the ground (nesting process) that have to be milling through during polishing. The cutting edge geometry is suitable for brittle, hard and abrasive plastics such as acrylic glass, SAN, solid surface (CORIAN ©), etc. designed. But also for many other materials. * to process a larger surface, use PL-FU.

VIDEO

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
