Face milling tool EURACRYL PL-FU DIA
end millinsertfinishing

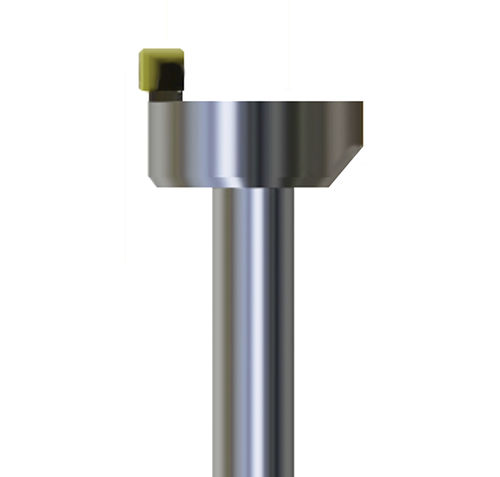

Face milling tool - EURACRYL PL-FU DIA - EURACRYL GmbH - end mill / insert / finishing
Face milling tool - EURACRYL PL-FU DIA - EURACRYL GmbH - end mill / insert / finishing
Face milling tool - EURACRYL PL-FU DIA - EURACRYL GmbH - end mill / insert / finishing - image - 2
Add to favorites
Compare this product


Characteristics

Geometry
end mill
Construction
insert
Type
finishing, face
Material
PCD, monocrystalline diamond
Treated material
for PMMA, for polycarbonate, for aluminum, for composites, for soft materials, for non-ferrous materials
Other characteristics
high-precision, cutting edge, for CNC machines, for machine tools, with 1 tooth, for high-gloss processing, with cylindrical shank
Diameter

10 mm, 16 mm, 20 mm
(0.39 in, 0.63 in, 0.79 in)

Length

50 mm
(1.97 in)

Rotational speed

Min.: 8,000 rpm
(50,265.48 rad.min-1)

Max.: 24,000 rpm
(150,796.45 rad.min-1)

Description

Front cutting end mills (face mill) with monocrystalline CVD cutter for high gloss finish. EURACRYL PL-FU is a range of tools that can be used to create a glossy or transparent horizontal surface (ground polishing) that has hardly any surface tension or roughness. These tools are simply unbeatable when machining areas that are difficult to access or internal surfaces that cannot be processed manually. EURACRYL offers a whole range of face milling cutters with monocrystalline CVD cutting edges with a milling diameter of 10 to 20 mm*. Tools with other dimensions are also possible. * for larger surfaces use milling heads types EURACRYL ST or EURACRYL ES
