Face milling tool EURACRYL ES-F
with replaceable insertfinishingPCD

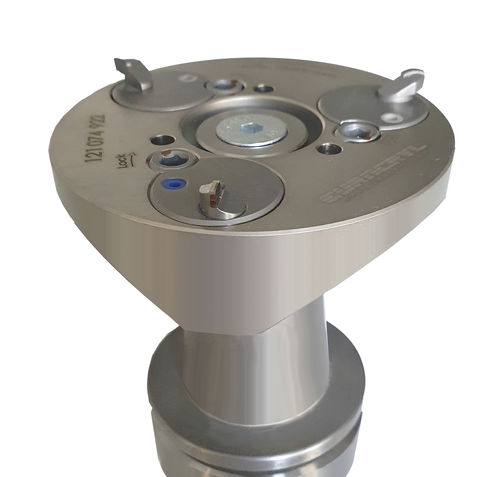

Face milling tool - EURACRYL ES-F - EURACRYL GmbH - with replaceable insert / finishing / PCD
Face milling tool - EURACRYL ES-F - EURACRYL GmbH - with replaceable insert / finishing / PCD
Face milling tool - EURACRYL ES-F - EURACRYL GmbH - with replaceable insert / finishing / PCD - image - 2
Add to favorites
Compare this product


Characteristics

Construction
with replaceable insert
Type
finishing, face
Material
PCD, monocrystalline diamond
Treated material
for PMMA, for polycarbonate, for aluminum, for composites, for soft materials, for non-ferrous materials
Other characteristics
high-precision, high-performance, modular, cutting edge, for CNC machines, for machine tools, for high-gloss processing, high feed rate
Diameter

Max.: 120 mm
(4.72 in)

Min.: 80 mm
(3.15 in)

Rotational speed

Max.: 18,000 rpm
(113,097.34 rad.min-1)

Min.: 6,000 rpm
(37,699.11 rad.min-1)

Description

Milling / polishing heads with quich changeable diamond cutters for the processing in CNC milling machines of glossy and transparent plastics as well as for light metals and composites. EURACRYL ES is a very extensive milling system with a series of inserts with diamond cutters that enable the processing of plastic and light metal as well as composite material. The material is milled and polished or satinized in one step. These milling / polishing heads are used when different materials have to be processed or diverse material surfaces have to be created. They are suitable for horizontal surfaces that are open to the side. They are intended for assembly in cutter head holders *. The cutters are ensembled in quick changeable inserts and can be separated from the body (disc) without any effort. All inserts have a standard height, even after the sharpening service. Therefore, they do not have to be re-measured. The various inserts are color-coded so that they can be easily identified. The cutting geometry is optimized for the respective material. This enables you to achieve better results and extends the working life of the tools. * select EURACRYL ES-S for installation in collet chucks
