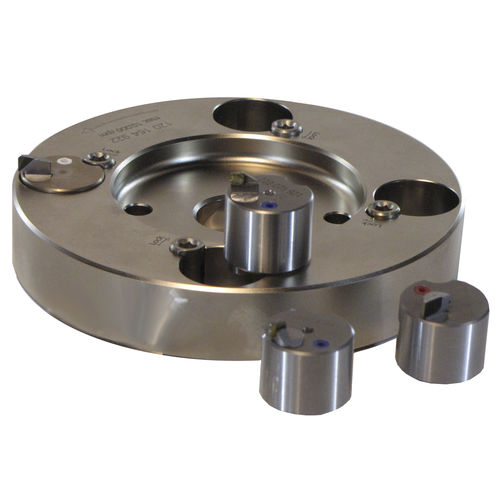

Milling tool with replaceable insert EURACRYL ES
finishingdiamondfor PMMA

milling tool with replaceable insert
milling tool with replaceable insert
Add to favorites
Compare this product


Characteristics

Construction
with replaceable insert
Type
finishing
Material
diamond
Treated material
for PMMA, for polycarbonate, for aluminum
Other characteristics
modular, for high-gloss processing
Diameter

Max.: 200 mm
(7.87 in)

Min.: 65 mm
(2.56 in)

Rotational speed

Max.: 18,000 rpm
(113,097.34 rad.min-1)

Min.: 8,000 rpm
(50,265.48 rad.min-1)

Description

Milling / polishing heads with quickly exchangeable diamond cutting edges for edge polishing machines for processing glossy and transparent plastics as well as light metals and composite materials. EURACRYL ES is the world's most successful tool system with quickly exchangeable cutters for edge polishing machines. It replaces your current original tool and enables you to produce more efficiently, faster, more versatile, more flexibly and more cheaply. On the market for 20 years and still unbeatable. And the reasons for this are obvious: The cutters can be removed and installed individually within seconds without any adjustment work. Even after a resharpening service. The different cutters are color-coded so that they can be easily identified. The individual cutters are universal and fit in all types of edge polishing machines as well as in CNC milling machines. You only need additional cutters, not complete heads, in order to process different materials or create different surfaces. The cutters can be removed individually for service. Only the cutters that really need to be resharpened are resharpened. The milling head EURACRYL ES with quickly exchangeable diamond cutters is available for your edge polishing machines.
