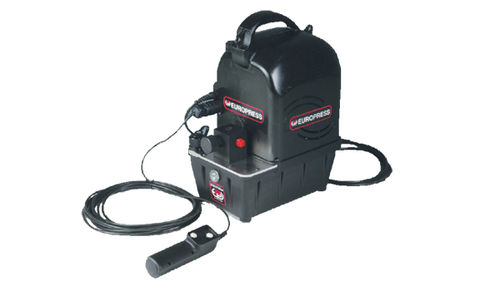

Electrically-powered hydraulic pump MD series

The two-stage hydraulic power packs are light and compact with superior technical characteristics. There is a large range of manual and electric-controlled valves that allows them to be used with single- and double-acting cylinders. All models are equipped with a single phase electric motor 230V - 50Hz and 0,75kW, and 2,800rpm. There is a plastic reservoir and a two-stage piston pump. There are manual or electric three- or four-way valves with or without pilot check, and they have a relief valve and electric cable of 5m. A remote control of 3m is available for the electric valve. A plastic frame with carrying handles is available except for version H. A protective cage is available in version H only with dimensions A x B x H 400 x 250 x 420. It also comes with an oil level gauge.
