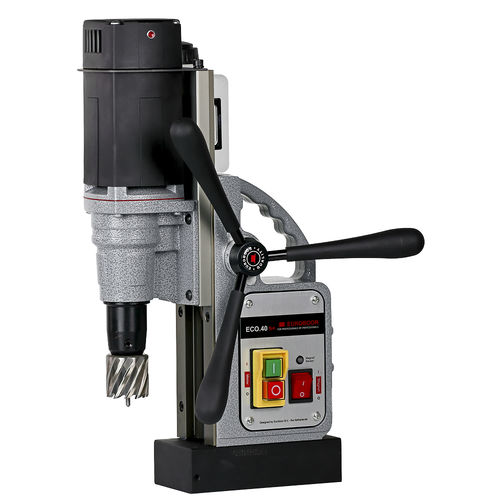

Electric core drilling machine ECO.40S+/IC
magneticwith cooling systemsingle-speed

Electric core drilling machine - ECO.40S+/IC - Euroboor - magnetic / with cooling system / single-speed
Electric core drilling machine - ECO.40S+/IC - Euroboor - magnetic / with cooling system / single-speed
Electric core drilling machine - ECO.40S+/IC - Euroboor - magnetic / with cooling system / single-speed - image - 2
Add to favorites
Compare this product


Characteristics

Type
electric
Other characteristics
magnetic, with cooling system, single-speed
Drill diameter

Min.: 12 mm
(0.47 in)

Max.: 40 mm
(1.57 in)

Rotational speed

380 rpm, 600 rpm
(2,387.61 rad.min-1, 3,769.91 rad.min-1)

Description

Our compact Euroboor ECO.40/2+ is the perfect magnetic core drill for core drills up to 40 mm (1 9/16″) and spiral drills up to 13 mm (1/2″). The innovative electronics in this magnetic core drill offer increased safety, significantly reducing the risk of damage to the machine, tool and workpiece whilst protecting the user in the event of excessive vibrations or sudden displacement. The service life is considerably longer and high maintenance costs are avoided. This lightweight and reliable magnetic drill is a welcome addition to any workstation. Key Characteristics Integrated slide for: • High accuracy • Enlarged lifecycle • Minimal vibration • Direct spindle drive • Integrated tool cooling and lubrication High-precision height adjustment for: • Low maintenance • Minimal wear correction • Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer • Reversible handles which enable you to change the operation side of the feed handles in confined spaces

Catalogs

No catalogs are available for this product.

See all of Euroboor‘s catalogs
