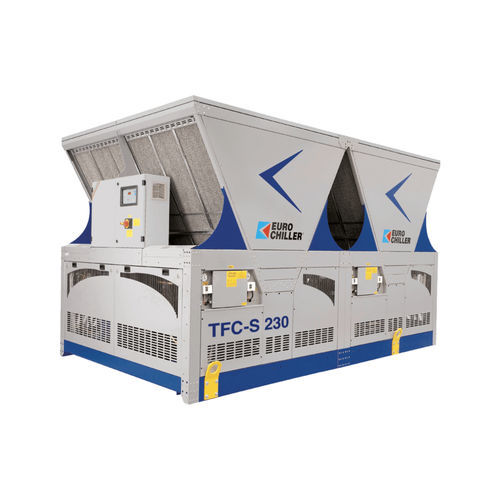

Water chiller TFC series

industrialfor the plastics industrystainless steel

TFC units differ from traditional chillers by the addition of a finned air/water heat exchange battery (free-cooler), a 3-way water flow modulating valve, pressure transducers and temperature probes supplying data to a microprocessor with unique software which then governs the operating parameters of the system. By exploiting low ambient air temperatures to cool water circulating through the finned heat exchange battery (free-cooler), cold water can be produced at minimal cost resulting in considerable energy savings. FEATURES STRUCTURE: galvanized steel, painted with epoxy-polyester powders COMPRESSORS: Scroll compressors, R407c refrigerant FANS: axial (Brushless fans: optional) CONDENSER: modular air condensers including a sub-cooling circuit EVAPORATOR: shell & tube evaporator which can be opened for inspection FREE-COOLING SYSTEM: finned coil for the air/water heat exchange and 3-way valve to control water flow TANK: stainless steel storage tank PUMP: stainless steel high pressure pumps CONTROL: microprocessor control panel with electric panel manufactured to IP54 complete with 7″ remote control panel CERTIFICATES: CE – PED The series complies with the ECOdesign Directive
