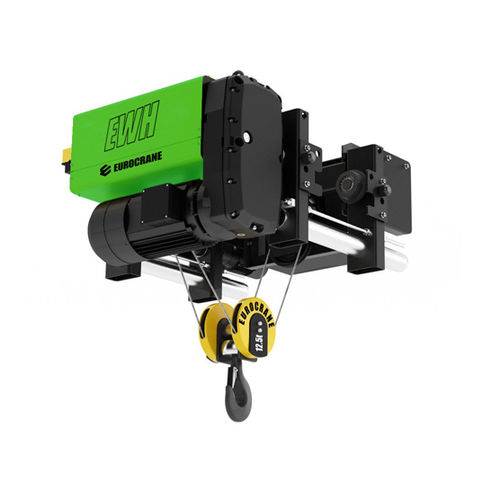

Electric cable hoist EWH

compactvariable-speed380 V

With leading technology and rich industrial experience, Eurocrane, based on customer needs and the modular design concept, has developed the EWH Electric Wire Rope Hoist which having many patents. The blocks adopt the trend-leading C-shaped design, delivering compact structure, smooth operation and accurate positioning. Making use of variable frequency control technology, braking energy feedback technology, security monitoring technology and others, EWH wire rope electric hoist is always the leader in the industry. EWH electric wire rope hoist is capable of providing your with better logistics solutions and ensure that equipment carries out reliable and safe operation. Maximum lifting load: 80t Standard Configuration Double-speed lifting motor for 1t~32t hoists;lifting motor with variable frequency for 32t~80t hoists Electromagnetic disc brake, maintenance-free design Supply voltage: 380V/3Ph/50Hz Control voltage:48V Lifting Limit Switch Trolley is equipped with variable frequency motor, speed:5~20m/min Protection grade of motor:IP55, insulation grade:F Hook set with safety buckles Load lifting limiter Ambient temperature:-20℃~40℃
