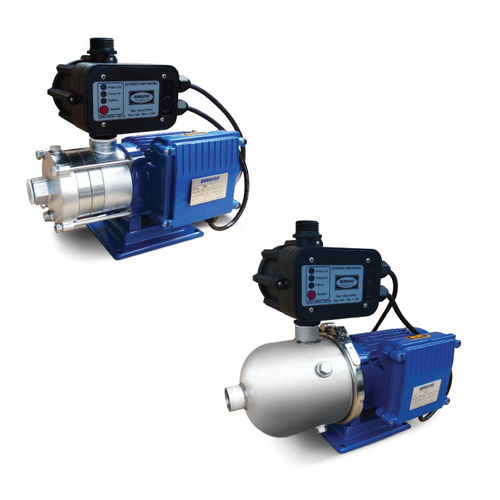

Impeller pump E series

waterwith electric motorindustrial

Horizontal, Multistage EHS/K and ECB/S are non-self priming, horizontal multistage pumps, use in domestic water supply or portable application. Its suitable for hot and cold liquids, even oily water that is clean and with no solid can be handled. Optional auto pressure switch can be fitted to enable pressure cut in/out to save energy and prolong the life of wear parts due to frequent start/stop, prolonging the motor life. Details FlangeBSP(F) threaded Materials EC - SS304 with cast iron in/outlet port or Fully 304, EH - Fully SS304 or Fully SS316 MountingMonobloc Specifications DNRp 1” to Rp 11/4” (female) Q0.5 m3/hr - 8 m3/hr O.P10 bars (subject to liquid temperature) H5 - 55m - 50Hz 6 - 76m - 60 Hz Ns2900 rpm - 50Hz, 3600 rpm - 60 Hz t0ºC to 100ºC Applications Domestic Water supply and booster Heating and Cooling in industrial process Cooling system in heat exchangers OEM for washing and dish-washing machines Light chemical transfer Aqua and Horticulture
