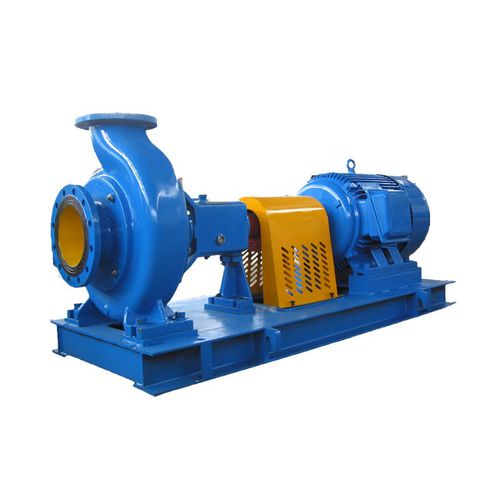

Radial pump EJG

waterslurrywith electric motor

End Suction, Semi-Open Impeller, Surface Pumps EJG series Open-impeller pulp pumps is based on new technology, the pump is successfully design based on long-term technology accumulation and on the experience of domestic and overseas advanced technology. The pump has a strong capacity to transport fibre, mud, the paper pulp below 5% consistency and other liquid with below 30% solid content. It can be used in those operating environments in the paper making, metallurgy, salt collecting, drainage and power plant, etc.The casing is end suction and radial discharge design. Its discharge centreline and shaft are in the same vertical plane. The casing is directly fixed on the base-plate. The front wear plate and back wear plate be designed for stripped down structure. We can replace worn part when the inter-spacer becomes large. Details FlangeISO 7005-1, PN 1.6MPa Materials Ductile Iron, Alloy Steel, Precipitation Hardening Stainless steel, Duplex Stainless Steel MountingBare Shaft, Direct Coupled with Electric Motor or Engine Specifications DN80 - 450mm Q20 m³/hr - 2300 m³/hr O.P16 Bar H8m - 60m Ns1450 - 2950rpm (50hZ) 1750 - 3550rpm (60hZ) t-20°C - 100°C Applications Pulp White water Green liquid Fibre Thick dark liquid Bittern water Sewage PVC slurry Polluted mud
