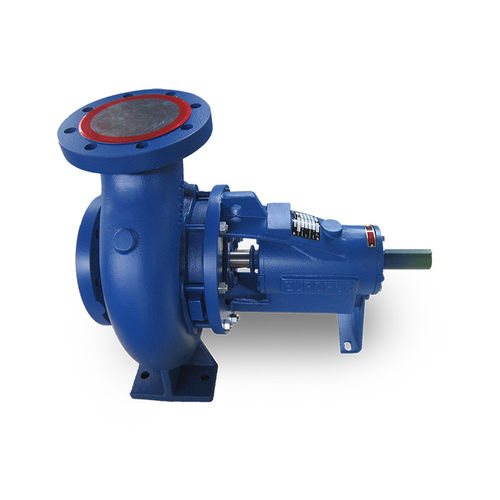

Water pump EU series

with electric motorcentrifugalindustrial

Single Stage, End Suction Surface Pumps General purpose Industrial Centrifugal pump. End Suction, Single Stage and Volute with Back Pull-Out (BPO) feature for ease of dismanteling. Dimensions and Performance built according to EN733/DIN24255 (VDMA 24278), EU and Germany machinary directive. 5 standards bearing frame and 3 extra strength bearing frame to reduce stocking. Details FlangePN 10 (std), PN 16 (optional) Materials Cast Iron, Ductile Iron, Bronze, Cast Steel, Stainless Steel MountingBare Shaft, Direct Coupled with Electric Motor or Engine Specifications DN32 - 400 Q2,100m³/hr O.Pup to 10bar (std) 16bar (optional) H150m Ns1450 - 2950rpm (50hZ), 1750 - 3550rpm (60hZ) t-10°C to 105°C (std) 150°C (optional) Applications HVAC and Cooling Tower Fire Protection and Fire Fighting Marine – Ballasting & Bilge Booster and Pressurization Set Heating, ventilation and air-conditioning Irrigation and agriculture
