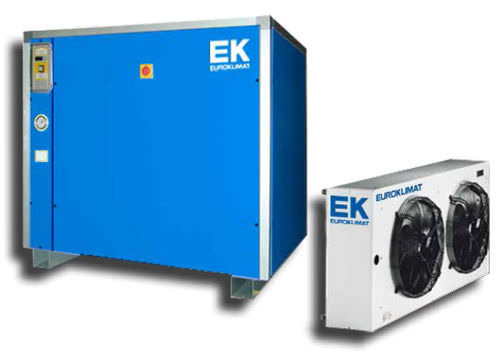

Water chiller EKA 10 - 201

Housing Base made of painted galvanised steel; panels made of galvanised steel externally coated with plastic (PVC) film and mounted on aluminium profiles to ensure total weathering resistance. Panels are internally lined to reduce the noise level (LN Accessories only).  Compressor HERMETIC SCROLL type (Rotary for model 10), complete with thermal protection. Antivibration mountings and oil charge are standard.  Water heat exchanger INTEGRATED solution NOFROST type: copper tubes in a plastic pipe fitted into a steel tank with shell covered with closed-cell neoprene anti-condensate material; complete with water differential pressure switch. BASE solution: plate-type made of AISI 316 steel complete with water differential pressure switch. Shell covered with closed-cell neoprene anti-condensate material.  Electrical board Switchboard to standards IEC 204-1/EN60204-1, complete with contactor and protection for compressor. Main isolator and door interlock safety device.
