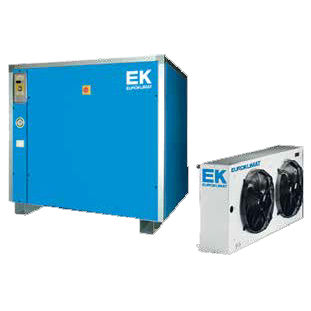

Water chiller RAK.A 15C2 - 80C2

 Housing Base Solution: Frame made of painted galvanised steel heavy profiles to ensure total mechanical and corrosion resistance. Integrated solution: Base made of painted galvanised steel; panels made of galvanised steel externally coated with plastic (PVC) film fixed in a aluminum frame. Panels are internally lined to reduce the noise level (LN Accessories only).  Compressor HERMETIC SCROLL type, complete with thermal protection. Antivibration mountings and oil charge are standard.  Water heat exchanger Plate-type made of AISI 316 steel complete with water differential pressure switch. Shell covered with closed-cell neoprene anti-condensate material.  Electrical board Switchboard to standards IEC 204-1/EN60204-1, complete with contactor and protection for compressor. Main isolator and door interlock safety device.  Control The microprocessor controls the unit capacity by timing the compressors and checks the operating alarms with the possibility to connect to BMS.  Refrigerant circuit Liquid receiver, filter dryer, moisture-liquid sight glass, solenoid valve, intercepting valve on the liquid line, thermostatic expansion valve with external equaliser, HP and LP pressure switches.  Water circuit (Integrated): Automatic charging cock with gauge, safety valve, expansion tank, water pump, water tank.  Remote condenser Units of this series are provided for the matching with an air cooled remote condenser of the CTK.E series (with axial fans) or CTK.C (with centrifugal fans). Condensers are supplied with maintenance charge of nitrogen.  Refrigerant charge The condenserless units are shipped with a maintenance charge of nitrogen.
