CO2 laser cutting machine L-3200for plasticsfor acrylicsfor wood
Add to favorites
Compare this product
Characteristics
- Technology
- CO2 laser
- Material
- for plastics, for acrylics, for wood, for fabrics, for stone, for composite materials, for glass, for ceramics
- Product handled
- roller, panel, for foam panels, for packaging, die board, for flexible PU foam blocks, for identification nameplates, carpet, adhesive tape, disc, multi-ply fabric, strip fabric, single-ply fabric
- Control type
- CNC
- Associated function
- engraving, marking, contour, multi-function, milling, chamfering, labeling
- Applications
- for industrial applications, for the automotive industry, for aeronautical applications, for the electronics industry, for medical applications, for the toy industry, laboratory, for shipbuilding
- Workpiece loading
- with automated loading, automated loading/unloading
- Configuration
- large-format, gantry type, high-rail gantry type, flatbed, double table, multi-head, 3-axis
- Other characteristics
- with water cooling, high-speed, automatic, universal, robotic arm, combined, high-precision, precision, for plastic film, CE, high-performance, high-efficiency, with optical registration, ISO, mechanical, programmable, for large parts, metalloid, electric, roller, with inkjet printer, with exchange table, with automatic feeder, small kerf, for heavy-duty applications, with servo-motor, robotic, for technical textiles, for mass production, modular, for ejection rubber production, with CCD camera, for thin materials, multi-ply, high-power
- X travel
1,800 mm
(70.87 in)- Y travel
3,200 mm
(125.98 in)- Maximum cutting height
Max.: 80 mm
(3.1 in)Min.: 58 mm
(2.3 in)- Cutting speed
Max.: 1.414 m/s
(4.639 ft/s)Min.: 0.001 m/s
(0.003 ft/s)- Laser power
Max.: 650 W
Min.: 60 W
Description

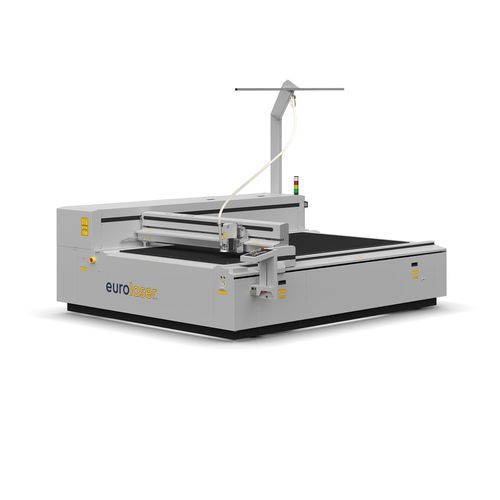

The L-3200 is a CO2-Laser Machine from Eurolaser. It can cut and engrave a broad range of materials on its 1800 x 3200 mm processing area. This laser machine is one of the largest units of the eurolaser series with dimensions measuring 3,520 mm x 3,940 mm x 1,600 mm. It is an adequate machine for applications that require a big working space.
The laser system is founded on a modular concept so that all essential units can be exchanged. This means that each system can be configured individually, making installation easier.
This machine accommodates materials with widths reaching up to 2080 mm. Its laser powers up from 60 to 650 watt. The L-3200 operates at speeds ranging from 1 - 1.414 mm/s with a 9.1 m/s² maximum acceleration
VIDEO
Catalogs
Product- and image brochure
33 Pages
