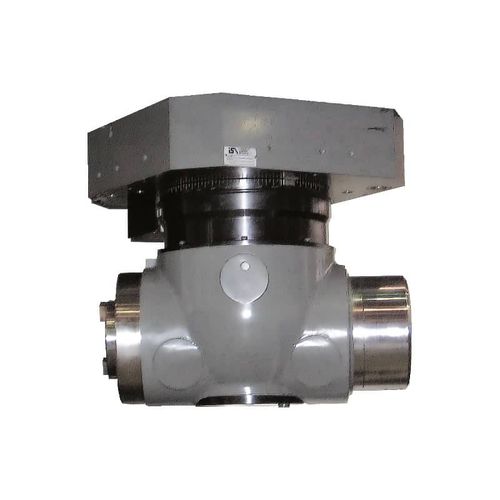

90° angle head TX1 HT 900for machining units
Add to favorites
Compare this product
Characteristics
- Type
- 90°
- Applications
- for machining units
- Power
25 kW
(33.99 hp)- Rotational speed
3,000 rpm
(18,849.56 rad.min-1)- Torque
900 Nm
(663.81 ft.lb)
Description
Angular heads 900
Head with one index and Direct Drive
Additional information
Tool taper [rif]
BT 50, ISO50
Plate locking force [N]
20000
Power [Kw]
25
Max. speed [rpm]
3000
Max torque on screw [Nm]
900
“C” Axis indexing step with Hirth coupling
2,5°
C Axis Hirth Coupling
Z.144
Weight [Kg]
300
