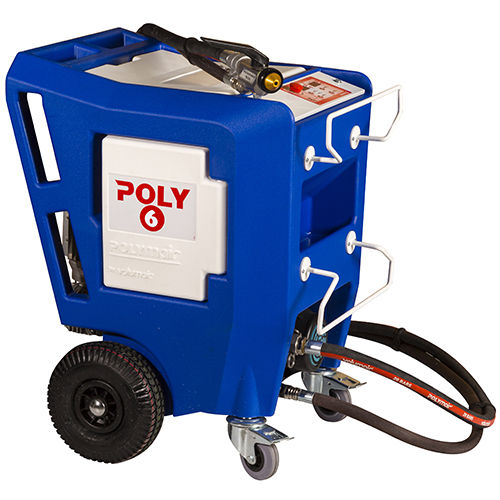

Liquids sprayer POLYMAIR 6 HVLP

electricfor coating

With an innovative, ergonomic and functional design, the POLYMAIR H.V.L.P. spraying system is ideal for spraying slurry products. It is equipped with a 5-stage H.V.L.P. turbine. Its polyethylene tank (easy to clean due to the choice of this low adhesion material) has numerous storage spaces included. Applications Film-coated Cork to spray Decorative products to spray... Technical characteristics - Product flow-rate 0 to 6 kg/min Motor power 0,75 kW Electrical supply 230 V - 50 & 60 Hz Motor current 3,64 A Tank capacity 32 L Maximum grain size 1,5 mm Pump MAP 3 Maximum pressure 30 bar Minimum pressure 10 bar Air coupling quick-connect Turbine power 1700 W Stages 5 Turbine pressure 0,67 bar Electronic control yes Dimensions (L x w x h) 72 x 60 x 90 cm Weight 60 kg Delivered with - a 7,5 m H.V.L.P. air hose - a 610 spray lance - a hose for slurry products Ø19 mm x 7,5 m - four nozzles n° 4, 5, 6, and 8 - two cleaning balls - a cleaning brush - an unplugging pin - a multi-use wrench - a blowing gun
