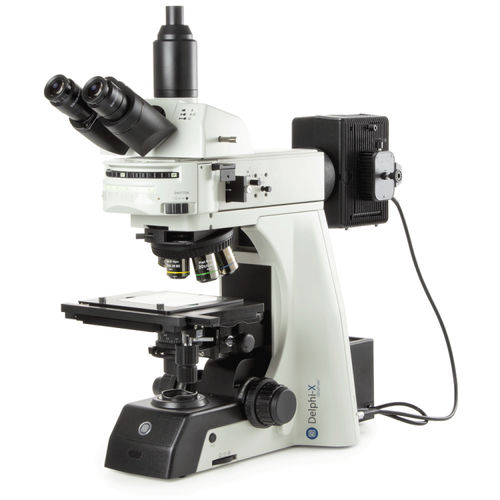

Optical microscope Delphi-X series

metallurgicaluprighttrinocular

State-of-the-art microscopes for advanced Materials Science applications The ergonomic design and outstanding state-of-the-art objectives make the Delphi-X Observer the ideal microscope for advanced Materials application. The 25 mm field of view of the eyepieces and the plan apochromatic objectives enable observations with perfect color rendering at high resolving power Highlights • Brightfield and Darkfield illumination • Enhanced infinity corrected EIS optical system • Full Apo, Semi- Apo and Plan EIS objectives • 100 W halogen illumination • Many ergonomic solutions • Normarski DIC (optional) • High contrast objectives with minimal abberations • Super Wide field SWF 10x/25mm eyepieces • Sextuple reversed nosepiece with slot for DIC EYEPIECES • Super Wide field SWF 10x/25 mm, Ø 30 mm tubes • Extended Wide Field EWF 10x/22 mm, Ø 30 mm tubes (optional) STANDARD HEAD Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78 mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces ERGONOMIC TILTING HEAD Optional ergonomic 0 to 35° tilting trinocular head supplied with SWF 10x/25 mm eyepieces, interpupillary distance between 47-78 mm and photo tube with standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces NOSEPIECE Revolving sextuple reversed nosepiece on ball-bearings with 25 mm objectives mounting threads
