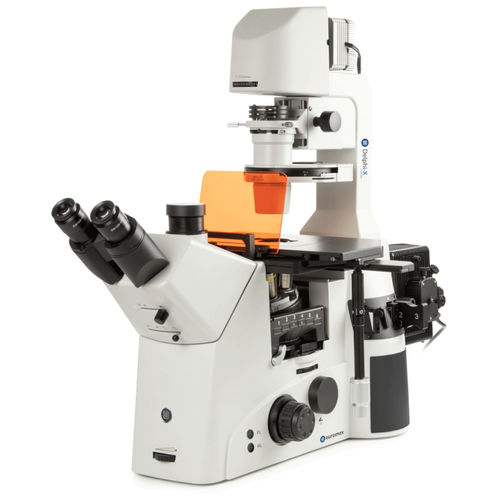

Optical microscope Delphi-X Inverso series

industrialinvertedtrinocular

Delphi-X Inverso fluorescence The Delphi-X Inverso™ for fluorescence is an inverted microscope for the professional who needs to observe tissues or cells stained with fluorescence dyes. Super contrast semi-apochromatic Fluarex™ objectives with collar adjustment ring assure perfect observation of cells or tissues in 1.2 mm thick Petri dishes or flasks Highlights • Life science applications • Brightfield, phase contrast fluorescence observations • Long working distance IOS plan semi-apochromatic Fluarex achromatic objectives • 100 W HBO mercury vapor fluorescence illumination • Easy placement of large objects • Observation of fluorescence in tissues and cells • DIC (differential interference contrast) • Revolving sextuple nosepiece • 10 W LED or 100 W halogen transmitted illumination • Backwards tilting condenser arm EYEPIECES Pair of DIN HWF plan 10x/25 mm or 10x/22 mm eyepieces with diopter adjustment HEAD Trinocular 45° inclined tubes. Interpupillary distance of 47 to 78 mm. Trinocular head with 100-0, 80/20 and 0/100 positions NOSEPIECE Revolving sextuple nosepiece on ball-bearings. The nosepiece can be equipped with DIC prisms for the 10x/20x and 40x objectives OBJECTIVES High numerical infinity semi-apochromatic long working distance plan phase Fluarex PLPHFi 10x/0.30, 20x/0.45, S40x/0.60 IOS objectives enable the sub-cellular structures. An optional 60x/0.80 IOS objective is also available. The 20x, S40x and optional S60 objectives are equipped with collar adjustment ring for glass thicknesses from 0 to 1.2 mm STAGE Stage 340 x 230 mm, equipped with a coaxial mechanical 130 x 85 mm X-Y stage. Supplied with: •  Metal insert for O 38 mm cell culture dish
