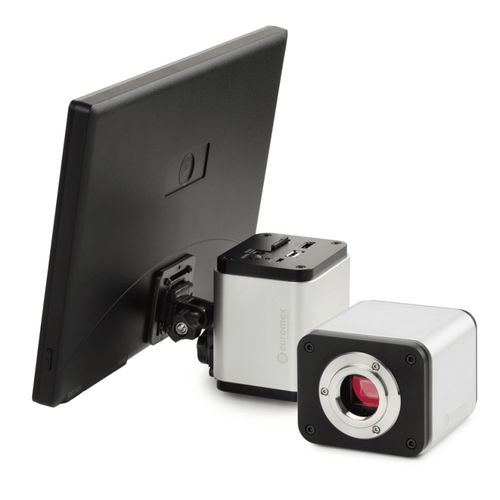

Industrial camera VC.303 series

digitalmeasuringfull-color

HD-Pro HDMI camera The real time images generated with this camera provide excellent color rendering at high frame rates, up to 60 frames per second on any direct connected HDMI screen or monitor. The HD-Pro high definition camera can be used in three modes: in a stand-alone with its embedded mouse-driven software, in a computer controlled mode or a combination of both  Connect the HD-Pro directly to a large TV or monitor, perform calibrated measurements, save images and videos all without need of a computer. The menu and controls are displayed on the TV and are controlled by a mouse, connected directly to the camera. More advanced analyses can be done by connecting the HD-Pro to a computer, where ImageFocus Alpha software allows for annotations, measurements, stacking, stitching and many more functions Highlights • HD 1080p high definition video camera • Real time images directly on screen • Built-in mouse-driven software • HDMI, USB-2 and SD memory card • HDMI 2.0 MP CMOS high sensitive sensor • Available with 11.6” HD screen (VC.3038-HDS) • Stand alone or used via PC or simultaneous use • C-mount interface • Compatible with ImageFocus Alpha software TECHNICAL SPECIFICATIONS  Sensor SONY IMX290 CMOS Format    1/2.8”, HDTV 1080p (50/60Hz) Pixels     1920 x 1080 pixels (capture mode) 1920 x 1080 pixels (live view), HDMI 60 fps, USB 26 fps Pixel size  2.9 x 2.9 µm Video 1080p pixels video recording mode HD screen (VC.3031-HDS) 11.6” Video Output Digital HDMI, USB-2  Scan mode Progressive scan, rolling shutter Exposure  Automatic/manual White balance Automatic/manual/ ROI Sensitivity 1300mV with 1/30s Noise     Standard noise reduction Color rendering 24
