Belt conveyor
rollerhorizontalhandling

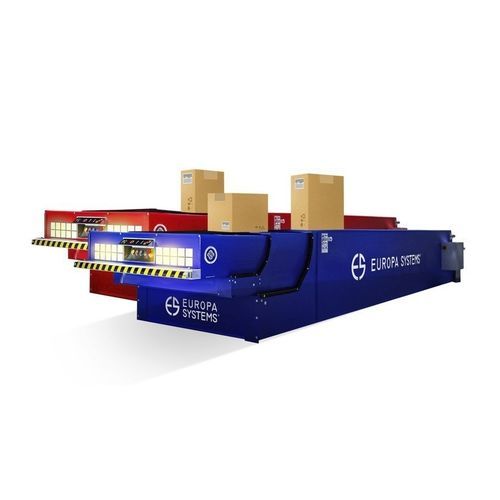

Belt conveyor - Europa Systems Sp. z o.o. - roller / horizontal / handling
Belt conveyor - Europa Systems Sp. z o.o. - roller / horizontal / handling
Belt conveyor - Europa Systems Sp. z o.o. - roller / horizontal / handling - image - 2
Belt conveyor - Europa Systems Sp. z o.o. - roller / horizontal / handling - image - 3
Belt conveyor - Europa Systems Sp. z o.o. - roller / horizontal / handling - image - 4
Belt conveyor - Europa Systems Sp. z o.o. - roller / horizontal / handling - image - 5
Belt conveyor - Europa Systems Sp. z o.o. - roller / horizontal / handling - image - 6
Add to favorites
Compare this product


Characteristics

Technology
belt, roller
Form
horizontal
Function
handling, loading, unloading
Construction
flexible, telescopic
Drive mechanism
electric drive, automatic
Transported product
for boxes, for pallet, carton, for containers, package
Applications
for trailers
Maximum load

50 kg
(110.231 lb)

Effective width

600 mm, 800 mm
(24 in, 31 in)

Length

Max.: 21 m
(68'10" )

Min.: 11.5 m
(37'08" )

Description

This conveyors are the best choice for warehouse units, either when it becomes necessary to increase their performance or when the available space is limited or, when it is not possible or economically feasible to reconstruct the entire system. AUTOMATIC LOADING AND UNLOADING OF LOOSE LOADS A telescopic conveyor is an effective solution in package handling applications. After extension, it minimises the need of manual handling of products by operators. When needed, the dropping or reception spot can be shifted directly to the operator's side by meand of simple joystick movement. ADVANTAGES: • improved work ergonomics • faster loading and unloading • safe and reliable operation    APPLICATIONS Telescopic conveyors are mainly used for flexible unloading and loading of trucks and trailers to 13 m in length. The telescopic conveyors handle carton boxes, cases, containers and small pallets (up to 50 kg). DETAILED DESCRIPTION The telescopic conveyors, produced by Europa Systems, are dedicated to handle ≤ 50 kg loads. Due to their special design, telescopic conveyors, consisting of a base and pull-out sections, significantly accelerate and facilitate the process of unloading and loading of goods. Our customers may select among conveyor variants with various numbers of pull-out sections and with different total length options, depending on the type of products transporting vehicles and the particular features of a warehouse (such as reloading platforms or the necessity to communicate with other conveyors).

VIDEO
