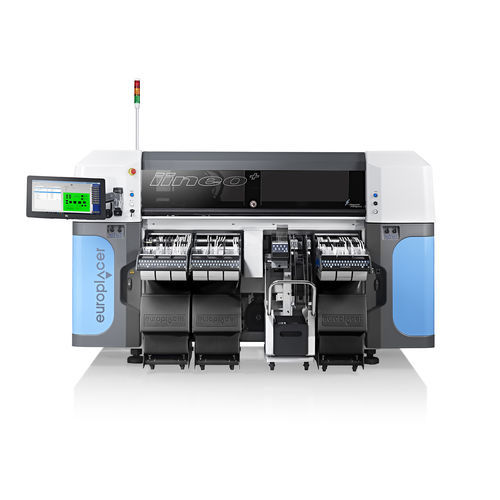

SMT pick-and-place machine iineo+ II

multifunction

Technically speaking, the iineo+ is a multi function SMT Pick and Place platform , with the highest level of flexibility and feeder count in the industry. It is widely configurable without the need to compromise on feeder count, placement speed or component capability. As you might expect from Europlacer, the SMT pick and place iineo+ is a single elegant structure capable of almost unlimited configurations. However, the most important aspect of this platform is the capability that comes as standard within the machine. On most of SMT pick and place machines, the heads can only place a specific range of components. It certainly just makes life complicated. As a result you can’t effectively balance that single machine, let alone a complete line. That’s why iineo+ has genuine line balancing capabilities. All heads and all nozzle positions capable of placing the full range of components. Above all, you don’t have to compromise on feeder positions or throughput speed, production can run as efficiently as is possible. Firstly iineo+ is fitted with linear motors and digital cameras. In addition, it utilises Europlacer’s unique and proven core features such as Integrated IntelligenceTM , intelligent feeders, smart nozzles and 3DPS. 3DPS provides guaranteed closed loop control of pick and placement forces for all components. Importantly, iineo+ is able to produce very large boards, as it is capable of being configured to manage 1610mm x 600mm size substrates. The SMT pick and place iineo+ II features two rotary heads on X/Y gantries, each containing 8 or 12 ‘Smart’ nozzles, delivering a maximum placement rate of 30,000 cph (IPC: 24,200 cph)
