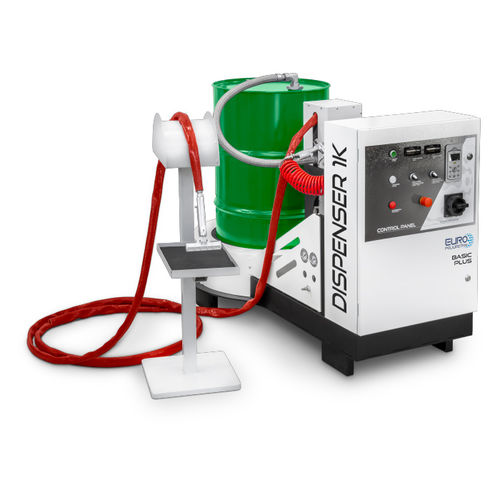

Glue dispenser 1K BASIC PLUS

manualfor panelssingle component

The 1K BASIC PLUS dispenser model with respect to the 1K BASIC model allows the use of 200 litres. This system has been designed for the use of two packs with very different capacities (50 litres and 200 litres) to allow the user to increase or decrease use of the chemical product according to work orders. TECHNICAL ASPECTS • Chemical packaging capacity: 50 litres, 200 litres. • Drum change: manual with suction pipe lifting. • Chemical suitable for the system: with or without additives. For the diaphragm pump the viscosity of the product can be up to 5000 cps, and for the piston pump even over 5000 cps. • Drum pipes and housing: heated. • Pump: diaphragm or piston. • Flow rate up to 25 l/min. • Temperature control/setting: by means of temperature controllers. • Flow regulation: via compressed air. • Version of gun installed: Standard replaceable with other models. The system consists of a carbon steel frame in which both the pumping system and its barrel/drum of chemical product are housed, together with the electrical panel for system control. The pumping system takes the chemical from the packaging and sends the fluid to the dispensing gun through a special pipe. This pipe and the base in which the glue drum is located are both heated to better fluidise the product in cold temperatures and to increase the reaction speed of the glue itself. The system is supplied with a liquid spray gun (optional use) to speed up catalysation of the glue once applied to the product.
