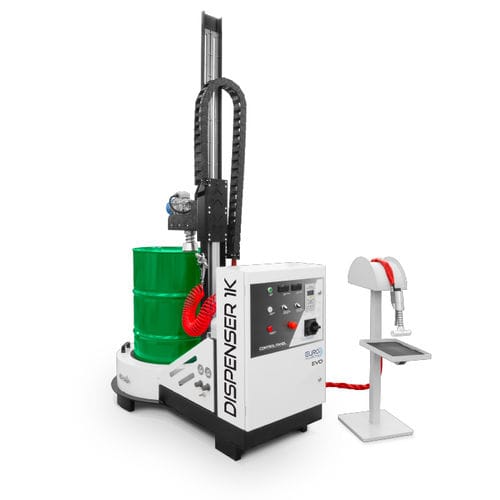

Glue dispenser 1K EVO

manualfor panelssingle component

The 1K EVO dispenser model is an evolution of the 1K BASIC PLUS dispenser, and now presents many additional features that allow the use of glues with additives and more precision in dosing. TECHNICAL ASPECTS • Chemical packaging capacity: 50 litres, 200 litres. • Drum change: automatic lifting of the pump with pneumatic column piston. • Chemical suitable for the system: with and without additives for both types of pumps. • Drum pipes and housing: heated. • Pump: gear driven by an electric motor (with flow rate of up to 5 l/min) or piston motor (up to 25 l/min) depending on the viscosity of the product. • Temperature control/Setting: by means of temperature controllers. • Flow rate regulation: via potentiometer for motor speed regulation with gear pump; the air pressure is applied to the piston pump. • Gun version installed: standard replaceable with other models. Glues with viscosity> 5000 cps can be used with the use of gear pumps driven by an electric motor. With a potentiometer inserted in the electrical panel of the system it is possible to precisely control the quantity of product to be dispensed. Changing of the empty drum in the dispenser takes place simply and quickly for both the piston pump and the gear pump system: with a requirement to lift the pumping system, the machine has been equipped with a column with a compressed air piston that allows easy changing of the drum. With a simple start command, the pump is automatically lifted waiting for the drum to be changed to be subsequently repositioned to resume work. A special system of gaskets will guarantee moisture tightness to avoid hardening of the glue.
