Relay testing device PTE-50-CE-PRO

for laboratoriesindustrialfor the electronics industry

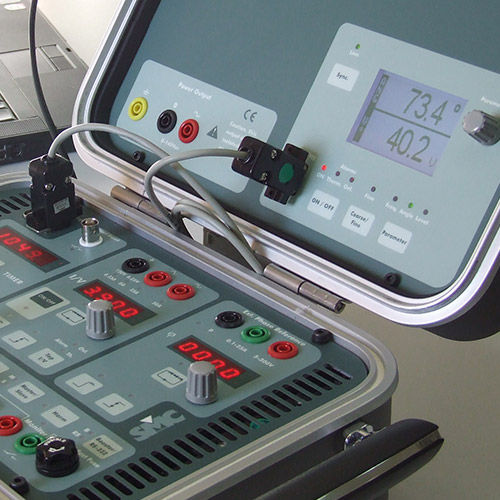

Any test set in the PTE range can be upgraded with an additional voltage source, the PTE-FCN option. Description This electronic, independent source can be adjusted in amplitude, frequency, and phase angle. It comes installed as standard with the ‘Pro’ versions of the PTE sets, but it can also be purchased separately and mounted by the user inside the unit’s lid in a few minutes. The PTE-FCN will dramatically increase the relay types that can be tested, usually avoiding unnecessary investment in three-phase equipment. The PTE-50-CE Pro, for example, is an unbeatable single-phase test set for directional, frequency, synchronisation and generator protection relays. CHARACTERISTICS Output power: 100 VA Current: up to 50A – voltage: up to 150V Selectable 1st to 7th harmonics Adjustable phase angle: 0 – 359.9º Second voltage (Pro): 30 VA, 0-140V, 0-359.9º, 40-70 Hz 1-ms resolution digital programmable chronometer External synch input RS-232 communications port and BUS-PTE Multi-mode trip detection Software-based adjustment and calibration IP-65 protective case 13.5 kg (Pro: 14.5 kg) APPLICATIONS Overcurrent relays Over / undervoltage relays Power factor relays Ground protections Reclosing relays Distance / impedance / directional relays Frequency relays Synchronizing relays
