Single-phase relay test system UNO

portablecompactautomatic

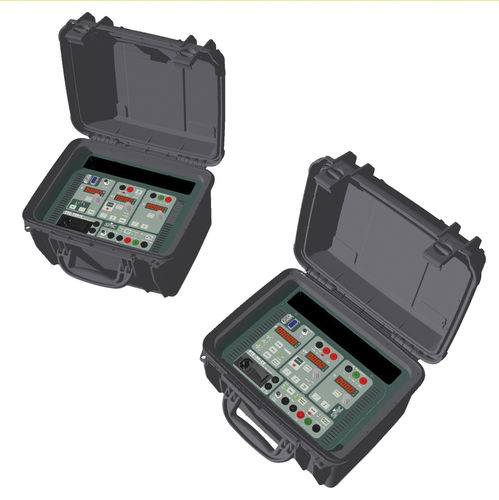

The UNO is a comprehensive, portable Single-phase test system capable of testing all types of single phase protective relays. With high power outputs package in an extremely compact and rugged system, the UNO has a tremendous power-to-weight ratio. The design incorporates the latest in modern digital microprocessor technology to achieve unbeatable output characteristics in terms of power, accuracy, low distortion, and dynamic capability. This hi-tech solution enables the testing of many different functions required in relay testing without the need of additional accessories. The system comprises 2 independent units with independent output channels. Each output channel is reversible from Voltage to Current (in the Voltage unit) or from Current to Voltage (in the Current unit). Each output is controlled for Amplitude and Phase Angle and can be ‘linked’ into a Master-Slave coordinated sequence, with simulated ramp and dynamic changes. All output signals are digitally generated, amplified, and internally controlled by the IGM’s (Intelligent Generator Modules) which interpret the commands received from the front panel to produce a highly accurate and stable output with low distortion that is independent of the voltage supply. The system also allows optional connection to a computer for either automatic testing of relays or control of the equipment using Windows compatible software. Even the adjustment and calibration of the equipment is made easy through the Closed Case Calibration software, supplied with the units, which enables calibration and/or adjustments of the outputs without any need for hardware intervention.
