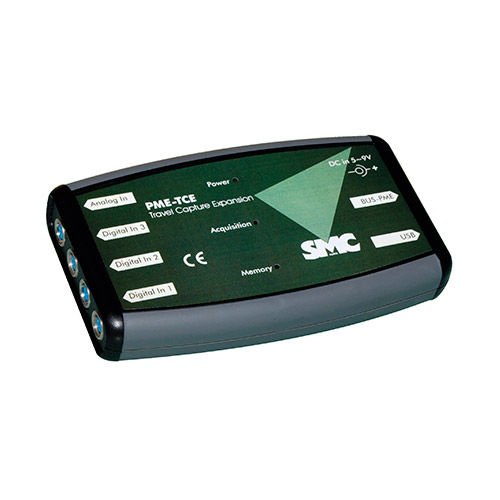

Circuit breaker transducer PME-TCE

USB

PME-TCE travelling module Motion Analysis Plug-in Interface The PME-TCE is a small accessory that can be purchased along with the PME-500-TR Circuit Breaker Analyzer or ordered later on with no installation required. The PME-TCE is a small accessory that can be purchased along with the PME-500-TR Circuit Breaker Analyzer or ordered later on with no installation required. It provides input for analogue & digital angular or linear position transducers available in the general market as well as from EuroSMC. The motion information includes pole speed, stroke, and wipe measurements, and is automatically added to the standard PME-500-TR test report. Characteristics: High capacity flash memory for results storage No external power supply required RJ-45 type connection to the PME-500-TR’s PME BUS USB type connection to PC Up to three digital and one analogue transducers (linear or rotary) can be connected simultaneously Fully set up and controlled from the PME-500-TR’s touch screen Aplications: – Condition evaluation of circuit breaker’s motion mechanism.
