COM Express development kit CPU-163-15
industrial

COM Express development kit
COM Express development kit
COM Express development kit
COM Express development kit
Add to favorites
Compare this product


Characteristics

Form factor
COM Express
Other characteristics
industrial
Processor frequency

1.46 GHz, 1.75 GHz, 1.91 GHz

Memory size

2 GB, 4 GB

Description

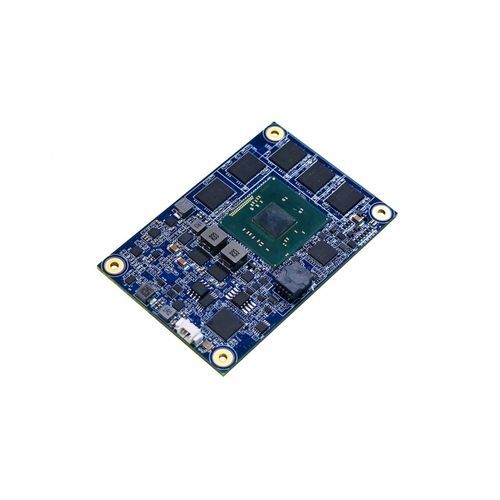

is a rugged COM Express module designed to meet the requirements for industrial and rugged fanless applications. Caratteristiche Powerful - Comes with Intel Atom E3800 CPU: one, two and four core configurations, up to 1.91GHz Mini - Complies with PICMG COM Express R2.1, with a 84x55mm (Mini) form factor and a Type 10 pinout Reliable - Offers memory configurations up to 4GB with ECC Rugged - Supports wide operating temperature (-40 to +85°C), conformal coating options, soldered memory and flash storage Low Power - Enables fanless designs with a CPU TDP starting from 5W Professional Services - Cuts Time-To-Market with Eurotech Professional Services, which include deep module customization, BIOS personalization, carrier board and system design and production IoT Native - Provides native support for IoT, including IoT middleware and access to Eurotech IoT Integration Platform Descrizione The CPU-163-15 is a rugged COM Express module designed to meet the requirements for industrial and rugged fanless applications. Compliant with PICMG COM Express R2.1, Type 10, the CPU-163-15 is a 84x55mm (Mini) form factor module based on the Intel Atom E3800 processor family, with 1 to 4 cores, up to 4GB ECC RAM and up to 32GB eMMC. With ECC soldered down memory and flash storage, the CPU-163-15 is the ideal hardware platform for applications requiring long life cycle, resistance to vibration and reliable data storage, even in extended temperature.
