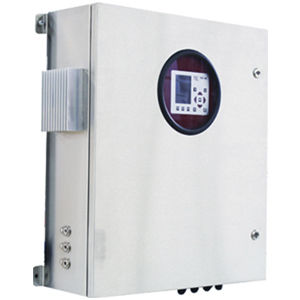

Biogas analyser SWG100 BIOEX

CO2/02COhydrogen sulfide

Fixed gas analyser suitable for use in potential hazardous areas, with-in biogas, landfill and bio-methane applications Benefits: - Fully ATEX certified for use in ZONE 2 Areas - Continuous monitor system - AUTO CALIBRATION as standard - CH4, CO2 and O2 measurements - Optional H2S, H2 and CO measurements - H2S level from 50 ppm to 10.000 ppm - Plug & Play pre-calibrated user replaceable sensors - UP to 4 sampling points - Integrated Gas Cooler and condensate water pump - Up to 40 x 4-20 mA outputs individually configurable - Up to 20 alarms relay outputs to be trigged on above/below set values - Modbus communication as standard - Optional profibus, ethernet or profinet - IP 65 rated stainless steel enclosure - Zero service downtime and full on-site serviceability - New extended warranty package available Description The SWG100 BIOEX is the NEW generation of fixed gas analysers which provide continuous monitor of 02%, CO2%, CH4%, H2S, H2 and CO gases primarily in Biogas generated from AD (Anaerobic digestion) and Waste water treatment plants, landfill gas and bio-methane upgrade. The SWG100 BIOEX integrated gas cooler, along with the peristaltic pump and the AUTO CAL functions provide high accuracy, repeatable and stable readings in any process conditions even with extreme wet gases, such has biogas sampling before the heating treatment. The employment of the gas cooler also maximise sensors protection from moisture build-up in the gas stream.
