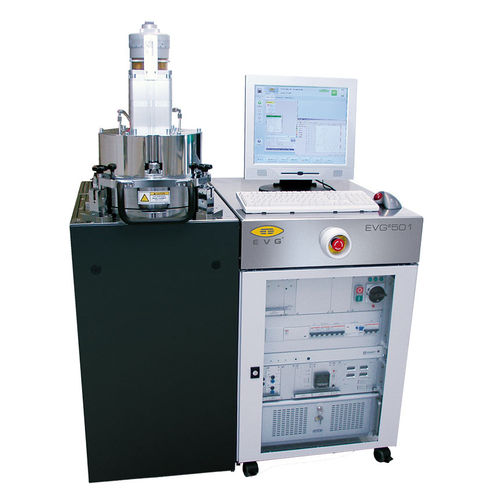

The EVG501 is a highly flexible wafer bonding system that can handle substrate sizes from single chips to 150 mm (200 mm in case of a 200 mm bond chamber). This tool supports all common wafer bonding processes such as anodic, glass frit, solder, eutectic, transient liquid phase, and direct. The easy access bond chamber and tooling design allows for quick and easy retooling for different wafer sizes and processes with a conversion time of less than 5 minutes. This versatility is ideal for universities, R&D facilities, or low-volume production. The design of the bond chambers is the same on the EVG high-volume-manufacturing tools, such as the EVG GEMINI, and the bonding recipes are easily transferable, allowing for easy scale up of production volumes.
Features
Unique pressure and temperature uniformity
Compatible with EVG mechanical and optical aligners
Flexible design and configurations for research
From single chips to wafers
Various processes (eutectic, solder, TLP, direct bonding)
Optional turbopump (<1E-5mbar)
Upgradeable for anodic bonding
Open chamber design for easy conversion and maintenance
Pilot production compatible
Open chamber design for easy conversion and maintenance
Smallest footprint for a 200 mm bonding system: 0.8 m2
Recipes are fully compatible with EVG’s high-volume-manufacturing bonding system
