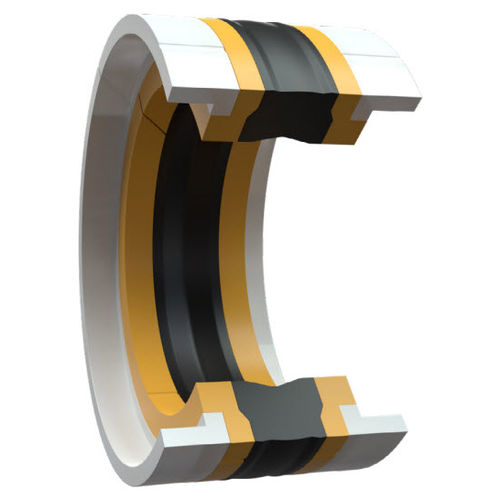

Piston seal GAMMA 00 series
lippedcircularNBR

piston seal
piston seal
piston seal
Add to favorites
Compare this product


Characteristics

Type
lipped
Configuration
circular
Material
NBR, thermoplastic, POM
Application
piston, for hydraulic applications, for hydraulic fluids, guide, for hydraulic cylinders, for hydraulic systems
Other characteristics
hydraulic, double-acting, compact, anti-extrusion, with anti-extrusion ring
Temperature limit

Max.: 100 °C
(212 °F)

Min.: -30 °C
(-22 °F)

Pressure limit

400 bar
(5,801.5 psi)

Diameter

Max.: 155 mm
(6.102 in)

Min.: 21 mm
(0.827 in)

Outer diameter

Max.: 180 mm
(7.087 in)

Min.: 30 mm
(1.181 in)

Speed

0.5 m/s
(1.6 ft/s)

Description

Profile : GAMMA00 Monobloc piston seal - Double acting Type : HYDRAULIC SEAL Material : NBR-PEE-POM Pressure : 40 MPa/400 bar Temperature range : -30°C / +100°C Speed : 0.5 m/s - All-in-one product (seal, back-up rings, guide rings) - Better seal stability due to optimised design - Seal suitable for rapid changes in pressure direction - Can be mounted in both open and closed grooves
