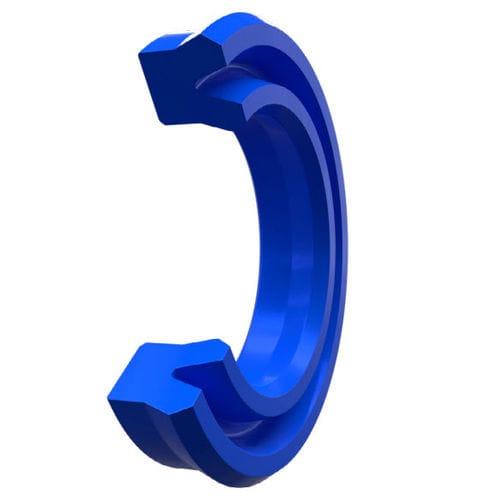

Piston seal TTE series
lippedcircularPU

piston seal
piston seal
piston seal
Add to favorites
Compare this product


Characteristics

Type
lipped
Configuration
circular
Material
PU
Application
piston, for cylinders, for hydraulic applications
Fluid
oil
Other characteristics
hydraulic, pneumatic, single-acting, flexible, custom-made, abrasion-resistant, anti-extrusion
Temperature limit

Max.: 110 °C
(230 °F)

Min.: -30 °C
(-22 °F)

Pressure limit

400 bar
(5,801.5 psi)

Diameter

Max.: 166 mm
(6.535 in)

Min.: 8 mm
(0.315 in)

Outer diameter

Max.: 180 mm
(7.087 in)

Min.: 14 mm
(0.551 in)

Speed

0.5 m/s
(1.6 ft/s)

Description

Profile: TTE - MPN - IPN Piston seals - Single acting Type : HYDRAULIC SEAL Material : PU Temperature range : -30°C/+110°C Speed : 0.5m/s - Easy to assemble - High resistance to abrasion and extrusion - Low deformation
