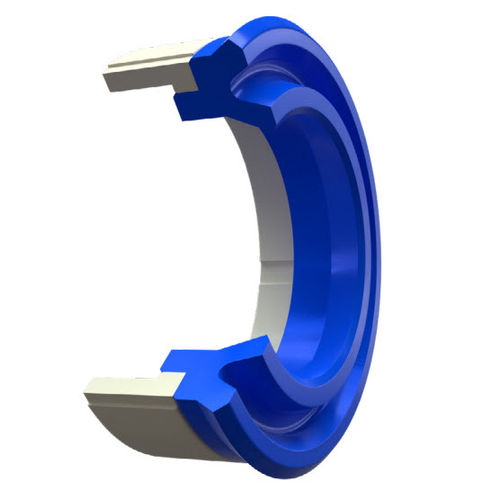

Piston seal TTE/W series
lippedcircularPOM

piston seal
piston seal
piston seal
Add to favorites
Compare this product


Characteristics

Type
lipped
Configuration
circular
Material
POM, PU
Application
piston, guide, for hydraulic cylinders
Fluid
oil
Other characteristics
hydraulic, dynamic, single-acting, custom, abrasion-resistant, anti-extrusion
Temperature limit

Max.: 110 °C
(230 °F)

Min.: -30 °C
(-22 °F)

Pressure limit

400 bar
(5,801.5 psi)

Diameter

Max.: 105 mm
(4.134 in)

Min.: 20 mm
(0.787 in)

Outer diameter

Max.: 125 mm
(4.921 in)

Min.: 22 mm
(0.866 in)

Speed

0.5 m/s
(1.6 ft/s)

Description

Profile: TTE/W Piston seals - Single acting Type : HYDRAULIC SEAL Material : PU+POM Temperature range : -30°C/+110°C Pressure : 40 MPa/400 bar Speed : 0.5m/s - Easy to assemble - Guide ring that will follow the path of the piston in the cylinder - High resistance to abrasion and extrusion - Low deformation
