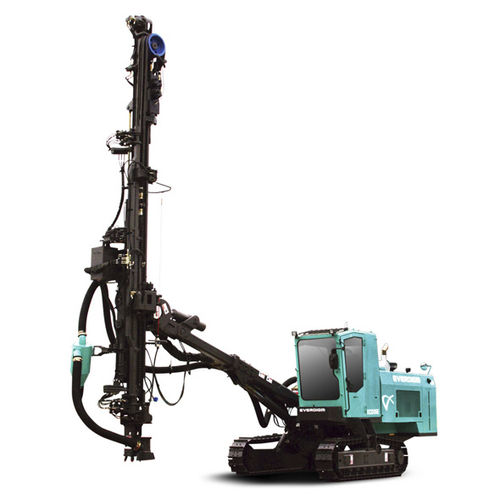

Blasthole drilling rig ECD35E
crawlertophammerhydraulic

blasthole drilling rig
blasthole drilling rig
blasthole drilling rig
blasthole drilling rig
blasthole drilling rig
blasthole drilling rig
blasthole drilling rig
Add to favorites
Compare this product


Characteristics

Applications
blasthole
Mobility
crawler
Drilling unit
tophammer
Other characteristics
hydraulic, diesel engine
Drilling diameter

Max.: 89 mm
(4 in)

Min.: 50 mm
(2 in)

Drilling depth

18 m
(59'00" )

Description

Model ECD35E has a bit and rod diameter of 64 to 102 mm, rod size T38/T45 and a rod length of 3,050 mm/3,660 mm. It weighs 13,000 kg and has an overall length of 9,165 mm, width of 3,305 mm and height of 2,860 mm. Drifter model ED-100/EHD-160 offers 2,000 blows at 2,000 bpm or 2,500 at 3,000 bpm. It has 0 to 200 rpms and a tramming ground clearance of 555 mm. The oscillation angle is 22 degrees (F11/R11) and the travelling speed id 0 to 35 km/hr. It has a Caterpillar C6.6 diesel engine with rated output of 173 hp/2,200 rpm. Its full tank capacity is 320 and its air delivery is 6/min at an air pressure of 10.5 kg/c.
