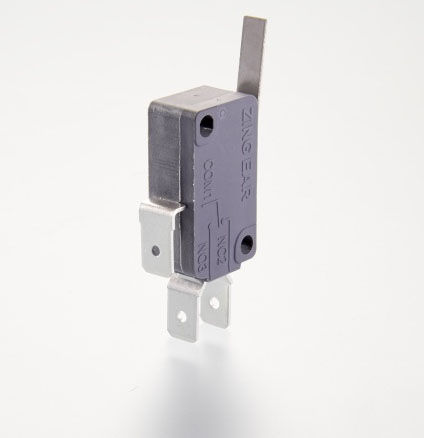

Lever micro-switch G5single-polemechanical
Add to favorites
Compare this product
Characteristics
- Type
- lever
- Number of poles
- single-pole
- Other characteristics
- mechanical
- Primary current
16 A
- Voltage
125 V, 250 V
- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 125 °C
(257 °F)
Description
Work speed 0.1 - 1 m/s (related to actuator form)
Work frequency Mechanical 60 cycles/min; Electrical 15 cycles/min
Insulation resistance > 100MOhm (500 VDC)
Contact resistance < 100mOhm (initial value)
Voltage (between terminals of same polarity) AC1000V, 50/60HZ, 1MIN
Temperature range -25 °C < T 10 Mio cycles - Electrical > 50 k cycles
