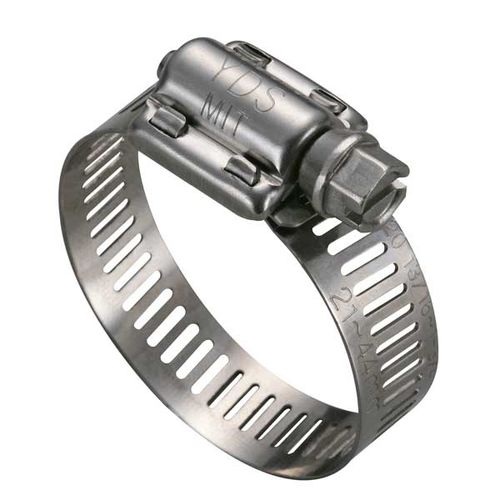

Stainless steel hose clamp Y2x8 series

wormhigh-torqueperforated band

HIGH TORQUE HOSE CLAMPS YDS high torque hose clamps are the general purpose in automotive, marine and industrial applications. They meet or exceed SAE requirements. 2-piece lock housing construction provide superior engagement of screw threads to band; giving a superior tightening torque with 70-90 in-lbs. Material are stamped on the housing, and clamping range are stamped on the band. They are also available with lined band to protect soft silicone hoses. Currently are available in plated screw, all 300 series, and all 316 stainless steel material. Please contact us for more information or products with your own logo. Product Description Band width: 1/2” (12.7mm) Band thickness: 0.024” (0.6mm) Hex. head screw: 5/16” (7.9mm) width SAE J1508 type F Standard Under RoHS & REACH standard Phillips/slot screw for Slot type screw for all 300 and all 316 stainless steel material hose clamps 2-piece lock housing construction Tightening Torque The recommended installation torque is 7.0 Nm (62 in-lbs).
