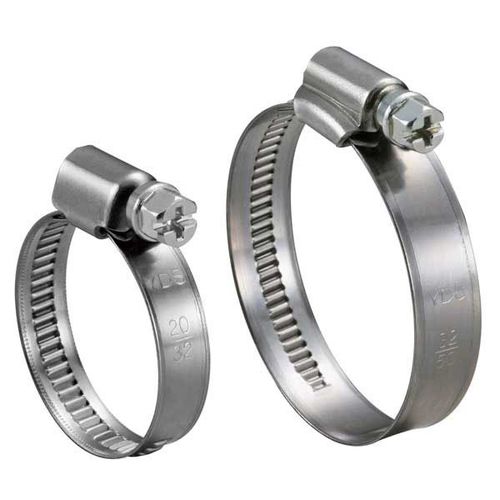

Stainless steel hose clamp Y152

wormembossed bandfor marine applications

ADVANCED EMBOSSED WORM GEAR HOSE CLAMPS YDS advanced embossed worm gear hose clamps are popular general purposes in automotive, marine and industrial applications. Sometimes called worm drive hose clamps, non-perforated band hose clamps, or German type hose clamps. They are produced in accordance with the DIN 3017 and RoHS & REACH standard. The smooth non-perforated band and flared edge prevent hoses from shearing and fray during installation. Material and clamping range are stamped on the band. Advanced embossed worm gear hose clamps are available in W2, W4 and W5 stainless steel material, and available in 9mm and 12mm band widths. For further information or products details, please feel free to contact us. Product Description Band width: 9mm & 12mm are available Band thickness: 0.6mm for 9mm band / 0.7mm for 12mm band Hex. head screw: 7mm width for both band width hose clamps In accordance with the DIN 3017 standard Under RoHS & REACH standard W4 and W5 series hose clamps are superior corrosion resistance Tightening Torque 9mm band width hose clamps: The recommended installation torque is 4.5 Nm (40 in-lbs). 12mm band width hose clamps: The recommended installation torque is 5.5 Nm (48 in-lbs).
