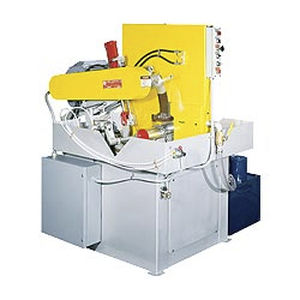

Cut-off saw 26"

for metalswet abrasiveautomatic

COMPLETE with 30 or 40 HP TEFC motor, magnetic starter with 110 volt at the pushbuttons, oscillation, air operated “V” shaped chain hold-down vise, coolant tray, settling tank and pump Exclusive vibra-action oscillation moves the wheel back and forth while cut is being made. This reduces the area of contact between the wheel and material, resulting in improved quality of cut, less heat build up, less burr and increased wheel life. Capacity: 5" solids. Most 7" Shapes Typical wet cutting speeds are 30 seconds per square inch of material based on application. Specifications Wheel Capacity: 26" diameter • Wet Non-Reinforced and Reinforced Wheels Motor: 30 or 40 HP Special Hi-Torque • Totally Enclosed Fan Cooled • 3 Phase Starter: Magnetic with thermal overload; 110 volt at the pushbuttons Spindle Bearings: Heavy-duty sealed ball bearings. Lubricated for life. Arbor Shaft: 1" arbor Drive: Positive timing belt. Oscillator: 1/3 HP gear motor Safety Guards: Cutoff wheel and guards exceed safety code requirements. Stop: Adjustable down stop limits depth of chop stroke. Vise: Air operated “V” shaped chain holddown vise. Hold various shaped materials. Hydraulic Power Head: (PH models only) with hydraulic feed control valve for smooth accurate cutting Wheel Wear Compensator: (WWC & HP models only) senses end of cut, returns wheel to up position. Oscillation: (OSC models only) For improved cutting, reduced burr and longer wheel life; Oscillator: 1/3 HP gear motor Shipping Weight: Machines: 1900-2400 lbs.
