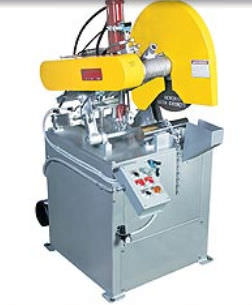

Cut-off saw 20 - 22"

for steel

Complete with 10 or 20 HP TEFC motor, magnetic starter with 110 volt at the pushbuttons, cabinet base, “V” chain hold-down vise Fast, Low Cost Cutting of Hardened Tool Steel, Bars, Pipe, Angle Iron, Tubing, Flat Stock & Rod. Capacity: 3" solids. Most 7" shapes Specifications Wheel Capacity: 20" or 22" diameter • Dry Reinforced Wheels Motor: 10 or 20 HP Special Hi-Torque • Totally Enclosed Fan Cooled • 3 Phase Starter: Magnetic with thermal overload; 110 volt at the pushbuttons Spindle Bearings: Heavy-duty sealed ball bearings. Lubricated for life. Arbor Shaft: 1" arbor Drive: Multiple “V” belt, raw-edge sure grip, stretch resistant. Safety Guards: Cutoff wheel and guards exceed safety code requirements. Stop: Adjustable down stop limits depth of chop stroke. Vise: “V” shaped to hold various shaped materials in best cutting position. Hold down chain foot pedal operated. Air operation optional. Hydraulic Power Head: (PH models only) with hydraulic feed control valve for smooth accurate cutting Wheel Wear Compensator: (WWC & PH models only) senses end of cut, returns wheel to up position. Oscillation: (OSC models only) For improved cutting, reduced burr and longer wheel life; Oscillator: 1/3 HP gear motor Shipping Weight: Machines: 525-1200 lbs.
