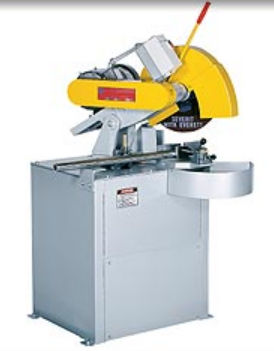

Miter saw 14 - 16"

for steel

Complete with 7.5 or 10 HP TEFC motor, magnetic starter with 110 volt at the pushbuttons, cabinet base, quick action cam lock vise Fast, Low Cost Cutting of Hardened Tool Steel, Drills, Reamers, Bars, Pipe, Angle Iron, Tubing, Flat Stock & Rod. Capacity: 2" solid • 5" pipe • 45°—1.75" Solids • 3" Most Shapes Mitering Cutting Head can swivel 45° left of center. Indicators for 0°, 15°, 30° and 45°. Cutting head and pedestal are mounted on rugged swinging knee secured in lubricated for life bearings. Lock to hold desired cutting angle is quick and easy to operate. Specifications Wheel Capacity: 14" or 16" diameter • Dry Reinforced Wheels Motor: 7.5 or 10 HP Special Hi-Torque • Totally Enclosed Fan Cooled • 1 or 3 Phase Starter: Magnetic with thermal overload; 110 volt at the pushbuttons Spindle Bearings: Heavy-duty sealed ball bearings. Lubricated for life. Arbor Shaft: 1" arbor Drive: Multiple “V” belt, raw-edge sure grip, stretch resistant. Safety Guards: Cutoff wheel and guards exceed safety code requirements. Stop: Adjustable down stop limits depth of chop stroke. Vise: Quick action cam lock. Outboard support to left of vise. Air operation optional. Shipping Weight: Machines: 450-780 lbs.
