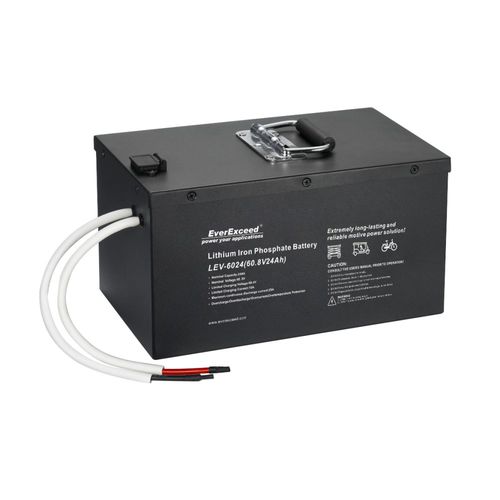

Lithium-ion battery LEV series
flat48 Vfor power tools

lithium-ion battery
lithium-ion battery
lithium-ion battery
lithium-ion battery
Add to favorites
Compare this product


Characteristics

Type
lithium-ion
Configuration
flat
Voltage
48 V
Applications
for power tools, for forklift trucks, high-temperature, for CATV applications
Standard
UL, CE, IEC, ISO
Other characteristics
high-performance, deep cycle, high-reliability, high density energy, BMS, stand-alone
Load capacity

Max.: 73.6 Ah

51.2 Ah

Min.: 51.2 Ah

Length / diameter

Max.: 350 mm
(13.8 in)

270 mm
(10.6 in)

Min.: 230 mm
(9.1 in)

Width

Max.: 360 mm
(14.17 in)

260 mm
(10.24 in)

Min.: 147 mm
(5.79 in)

Height

Max.: 234 mm
(9.2 in)

200 mm
(7.9 in)

Min.: 81 mm
(3.2 in)

Weight

Max.: 25.5 kg
(56.22 lb)

14.4 kg
(31.75 lb)

Min.: 9 kg
(19.84 lb)

Description

Basic introduction: EverExceed Motive lithium batteries are plug and play, long warranty, zero maintenance, fully automatic battery protection system, simply take out your old batteries and put in the smart batteries, turn on the power and you are ready to go. Innovative features: -Ultra Long Life Cycle: Extremely longer life cycles than lead acid batteries, (=>3000 @100% DOD). -Fast Charging: Superior fast charging capability, 1-1.5hr charging to 100% can be provided (optional). -Lighter Battery Weight: 70% lighter than equivalent lead acid batteries, less weight load for your vehicle, less mechanical stress. -Wide Operational Temperature Range: -20 °C (-4°F) and +60°C (140°F) -Replace Time: 5~8+ years replace time whereas traditional lead acid batteries need replacement in every 2-3 years. -Flexible Configuration: easy to install and no need for additional man cost. -Green Energy: Non-toxic, no harmful heavy metals used that can harm the environment. Safety: advanced BMS ensures high safety over the whole service life Advantages & Benefit: •Safety: The BMS is built with perfect automatic protection against over-voltage, over-current, over-discharge, over-temperature; Easy to replace lead acid battery: The BMS also allows the battery can be charged fully with standard lead-acid characteristic curves charger, which means replacement for original lead acid battery become easy; Applications: •Golf cars •AGV •Aerial Lifts •Material Handling Equipment •Sweepers •Marine/RV Certificates: UL 1642 / UN38.3 / CE/ IEC62133 Latest projects: -2020, Netherland- 99.6V 40Ah lithium battery for Electric Vehicle Power -2018, Indodesia- 24V and 36V lithium battery for AGV
