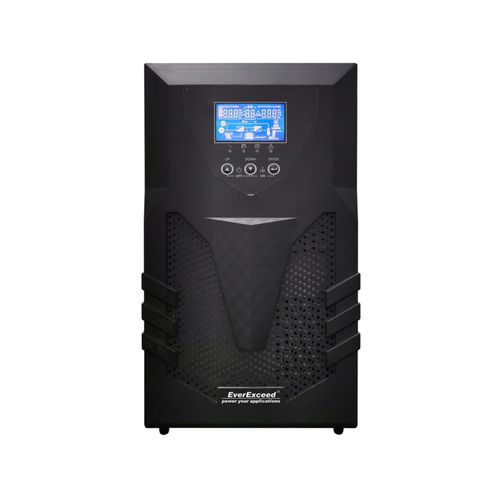

Single-phase UPS PL1 Series
on-linewith LCD displaywith built-in battery

single-phase UPS
single-phase UPS
single-phase UPS
single-phase UPS
single-phase UPS
Add to favorites
Compare this product


Characteristics

Type
on-line
Electrical characteristics
single-phase
Other characteristics
with LCD display, with built-in battery, pure sine wave, high-performance, high-frequency, adjustable
Applications
data center, network, server
Output power kVA

1 kVA, 2 kVA, 3 kVA
(1.359621 hp, 2.719242 hp, 4.078863 hp)

Input voltage

Max.: 300 V

Min.: 110 V

Output voltage

208 V, 220 V, 230 V, 240 V

Power

1,000 W, 2,000 W, 3,000 W

Description

PL1 Series High Frequency Online UPS PL1 series feature high input and output power factor, self-adaptive output frequency according to input frequency,intelligent battery management and excellent network management. Key features: Wide voltage range: Adjustable output voltage 208V, 220V, 230V, 240V & the charging current can be adjusted from 1-12A, offering excellent choice for various applications. Safe & reliable: Double-sided circuit board design, higher safety and reliability. Featured with output short circuit protection & overload protection.The new topology is better for noise and surge protection. High performance: Pure sine wave output, zero conversion time online. High efficiency: The output power factor canreach up to 1.0 LCD Display: Displays the status parameters clearly at a glance. Remote monitoring: It can be matched with the power monitoring software " Electronic Management Expert" to enable UPS network and remote monitoring. Applications: Servers, IDC (Internet Data Center), Network, Workstation, Communication system, Office, PC & Control system.
