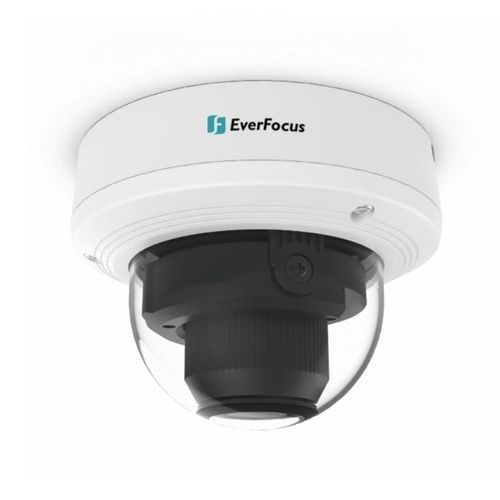

Digital camera EHN2550-SG (NDAA)

3Dmonitoringdetection

EHN2550-SG (NDAA) 5-Megapixel IR & WDR, Outdoor Dome Network Camera • 5MP Progressive scan CMOS sensor • Equipped with 2.8~12mm motorized lens • Triple-streaming from H.265 / H.264 • Supports 3D DNR (Digital Noise Reduction) • Provides True Day/Night functionality with automatic IR filter operation • Extended IR range up to 45m / 148ft. • Support video analytics • Supports ONVIF • Weather-proof IP66 rated • Supports PoE and 12VDC Pickup Device : 5MP Progressive scan CMOS sensor Lens : 2.8~12mm motorized lens FOV : H: 101° ~ 32°, V: 71° ~ 23°, D: 129° ~ 40° F No. : 1.4 (W) ~ 3.1(T) Minimum Illumination : Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON Day/Night : IR cut filter with auto switch（Day/Night/Auto/Schedule） Shutter : 1/5 ~ 1/20000s Video Compression : H.265 / H.264 Max. Video Resolution : 2592 × 1944 Frame Rate : 25fps / 30fps AGC : Supported Triple Streams : Supported AWB : Auto/Manual/Indoor WDR : Supported 3DNR : Supported Video Output : Supported Audio : Supported; 1 input / 1 output (RCA) SD Card Slot : Supported; Micro SD slot, up to 256GB Password Protection : Supported Alarm Input / Output : Supported; 1 input / 1 output Reset Button : Supported Supported Protocols : TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP Connector : DC Jack, RJ-45 Video Analytics : Motion detection, Pedestrian & Vehicle Detection, Face Detection, Perimeter Intrusion Detection, Line Crossing Detection, Goods Lost Legacy, Cross counting, Heat Map, Crowd Density Detection, Queue Length Detection
