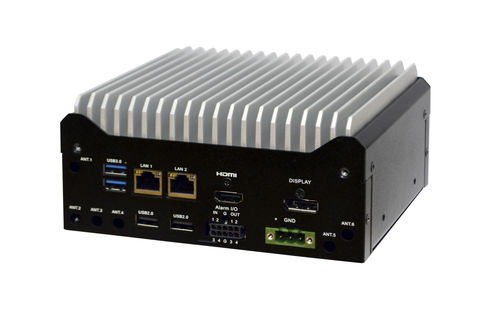

EDGE computer eIVP-EHL-IV-V0000
boxIntel® Atom™ x6425REHDMI

EDGE computer
EDGE computer
Add to favorites
Compare this product


Characteristics

Type
EDGE
Configuration
box
Processor
Intel® Atom™ x6425RE
Ports
HDMI, DisplayPort, USB 3.2, RS-232, USB 2.0, RS-485, RS-422, SATA, CAN bus
Domain
industrial
Other characteristics
fanless

Description

eIVP-EHL-IV-V0000 - Intel® Atom® x6425RE Processor (Elkhart Lake) In-Vehicle System Features • - Fanless in-vehicle system • - Intel® Atom® x6425RE Processor (Elkhart Lake) • - DDR4 3200MHz memory, up to 32GB • - Supports DisplayPort x 1, HDMI x 1 • - Supports USB 3.2 x 2, USB2.0 x 4 • - Supports GbE LAN x 2 (TPM 2.0-supported) • - Supports Serial COM x 4 (RS232/422/485) • - Supports CAN bus x 2 (isolated) • - Supports M.2 B-Key 2242/2280 x 1 (for NVMe SSD), SATA x 1 • - Supports M.2 B-key 3052 x 1 (for 4G/5G module) • - Supports M.2 E-key 2230 x 1 (for Wi-Fi 6E/BT module) • - Supports 9V to 36V wide range DC power input • - Certified with CE, FCC-Class A

Catalogs

No catalogs are available for this product.

See all of EverFocus Electronics Corporation‘s catalogs
