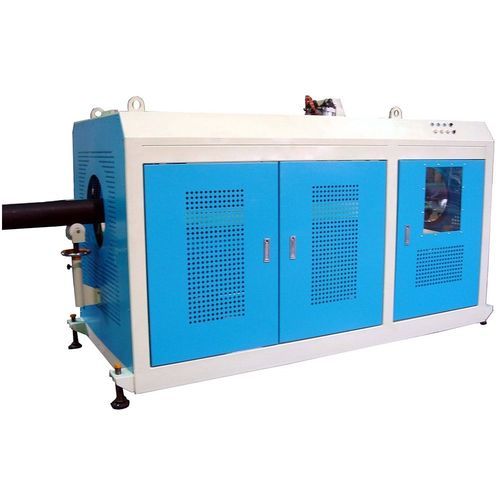

Tube cutting machine E series

chamfering

We provide diffident kind of cutters such as EFC, ERS, ERK, and ESC, enable to cut soft and thin thickness tube, with chamfering and cutting function for rigid pipe cutting. Cutting surface areas range from 100mm x 100mm of the ESC series to the 1200mm x 80mm of the EKC1200 series, with varying designs to fit different cutting requirements. Specifications for the ESC (saw cutter) Series Are: -Max. Cutting Speed: 20 times / min -Cutting Tolerance: +/- 1mm -Cutting Verticality: 0.3/100mm -Blade Speed: 3400 rpm -Specifications for the EFC Series Are: -Max. Cutting Speed: 35 times / min -Cutting Tolerance: +/- 0.2mm -Cutting Verticality: 0.3/100mm -Blade Speed: 3400 rpm -Specifications for the EKC Series Are: -Cutting Tolerance: +/- 0.2mm -Max. Work Area: (H)80mm x (W)1200mm
